0utput:
4 channels
Product weight:
114g/ 4.0oz
Package weight:
177g / 6.2oz
Operating temperature :
-20 ° C - 60 ° C
Input / output voltage :
DC12-24V
Product color:
Silver
Remote powered by:
CR2025
Shell material:
Aluminum

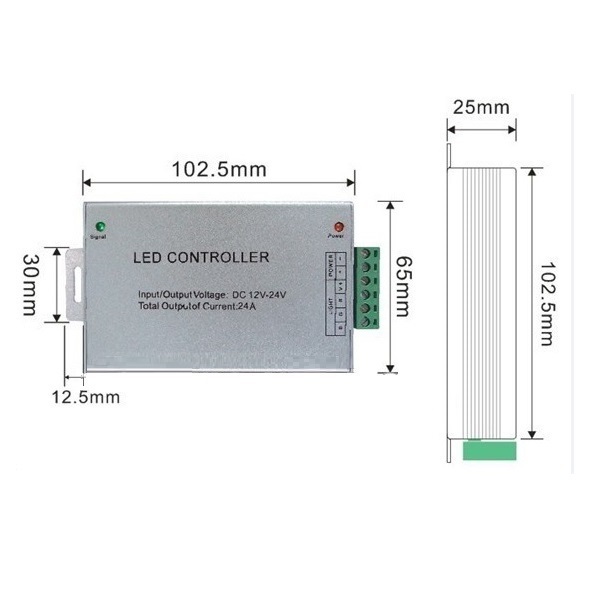

Product size:
13 * 6.5 * 2.5cm / 5.1 * 2.6 * 1.0in
Package size:
13.5 * 7.5 * 5.5cm / 5.3 * 3.0 * 2.2in
Maximum output current:
Each 6A, 24A total
Common anode / common cathode is optional.
Dynamic mode：
19modes
Supply voltage:
DC12V
PWM grade：
256 grades
Item weight:
> 60g
Package weight:
90g
Dynamic Speed Level：
10 levels
Connecting mode:
common anode
Package size:
125.5 * 6.5 * 7cm
Output power:
5V < 30W；12V< 72W；24V< 144W
Static power consumption:
< 1 W
Output current:
< 6 A (each channel)
Remote distance:
> 30m at open area
Remote Control size:
123 * 3.5 * 2.2cm
Controller Box size:
125cm x 6.5cm x 5cm
Color dimmable in 8 steps
6 storage spaces for own colors (DIY)
6 different color changing programs
Auto: Changes the other 5 programs automatically
Flash: The color white flashes and can be set with the Quick button to a stroboscope
Jump3: The colors red, green and blue flash alternately
Jump7: 7 Color flashes alternately
Fade3: The color red, green and blue become light and dark and alternate
Fade7: Gentle color sequence with many different colors

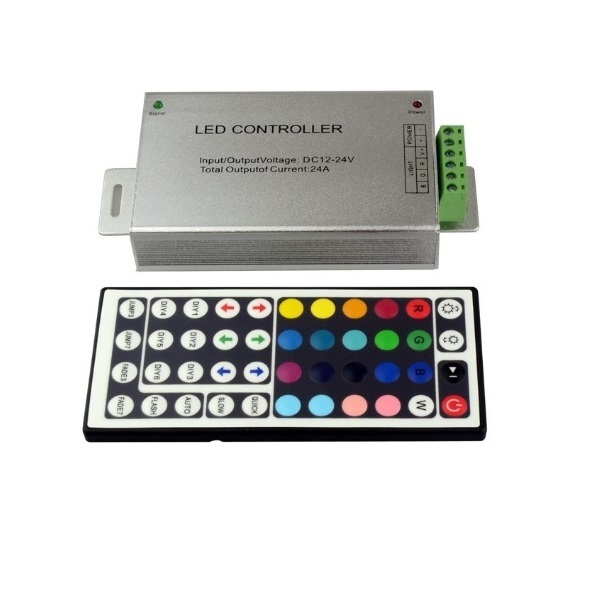

1 * Aluminum Alloy 24A Supply
1 * 44keys IR Remove Controller
