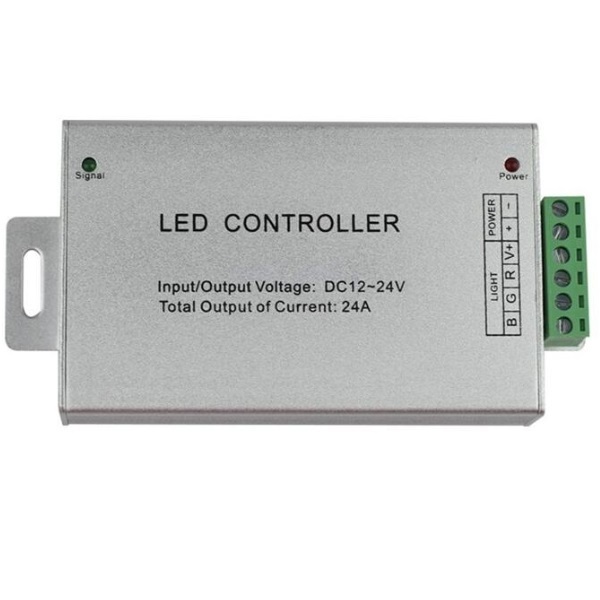

Specifications
|
Brand |
Maidodo |
|
Item model |
MDD-KZQ-ALUM-44K-24A |
|
0utput |
4 channels |
|
Product weight |
114g/ 4.0oz |
|
Package weight |
177g / 6.2oz |
|
Input / output voltage |
DC12-24V |
|
Product color |
Silver |
|
Remote powered by |
CR2025 |
|
Shell material |
Aluminum |
|
Operating Temperature |
0 ° C - 40° C |
|
Product size |
13 * 6.5 * 2.5cm / 5.1 * 2.6 * 1.0in |
|
Package size |
13.5 * 7.5 * 5.5cm / 5.3 * 3.0 * 2.2in |
|
Maximum output current |
Each 6A, 24A total |

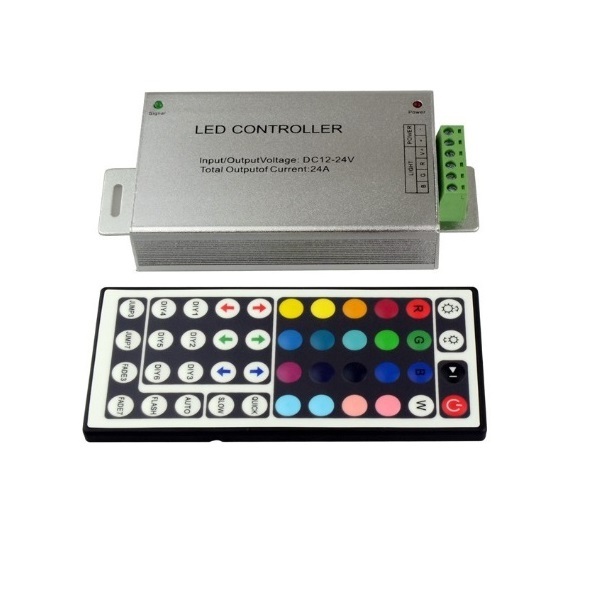

44KEY Remote Controller
|
Output |
4 channels |
|
Dynamic mode |
19modes |
|
PWM grade |
256 grades |
|
Package weight |
> 90g |
|
Item weight |
60g |
|
Supply voltage |
DC12V |
|
Connecting mode |
Common anode |
|
Working temperature |
-20-60 °C |
|
Remote distance |
> 30m at open area |
|
Output current |
< 6 A (each channel) |
|
Output power |
5V < 30W；12V< 72W；24V< 144W |
|
Package size |
125.5 * 6.5 * 7cm |
|
Static power consumption |
< 1 W |
|
Remote Control size |
123 * 3.5 * 2.2cm |
|

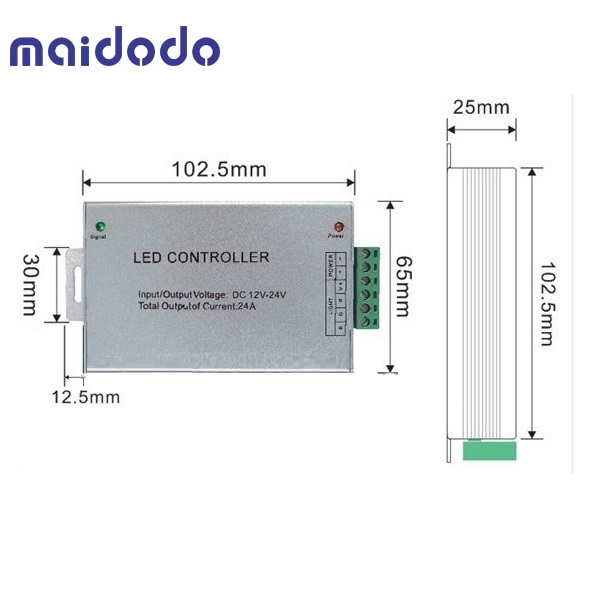

Controller Box size |
125cm x 6.5cm x 5cm |
|
Dynamic Speed Level |
10 levels |
20 different colors (dimmable)
