Product Details
Brand
|
Maidodo
|
Item model
|
MDD-KZQ-44KEY-6A/12A
|
Output
|
3 channels
|
Item weight
|
60g
|
Package weight
|
90g
|
Supply voltage
|
DC12V
|
Dynamic mode
|
19 modes
|
PWM grade
|
256 grades
|
Connecting mode
|
Common anode
|
Dynamic Speed Level
|
10 levels
|
Package size
|
125.5 * 6.5 * 7cm
|
Static power consumption
|
< 1 W
|
Remote distance
|
> 30m at open area
|
Remote Control size
|

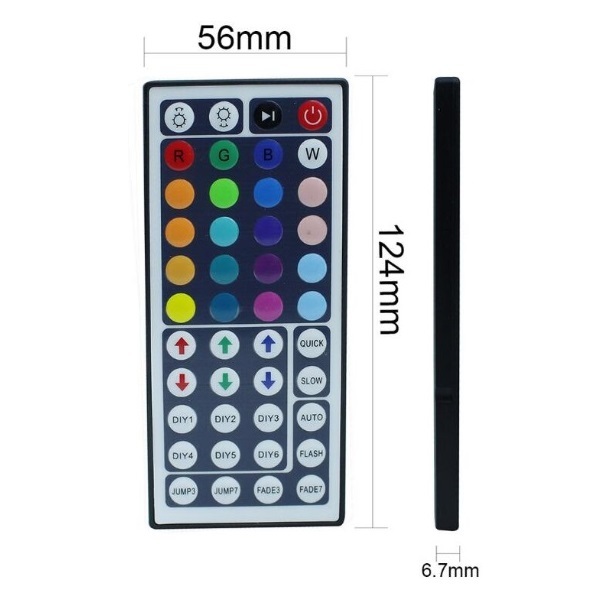

123 * 3.5 * 2.2cm
|
Output current
|
< 2 A (each channel)
|
Controller Box size
|
125cm x 6.5cm x 5cm
|
Output power
|
5V< 30W;12V< 72W;24V< 144W
|
RGB mini controller Battery
|
CR2025 cell battery
|
Working temperature
|
-20-60℃
|

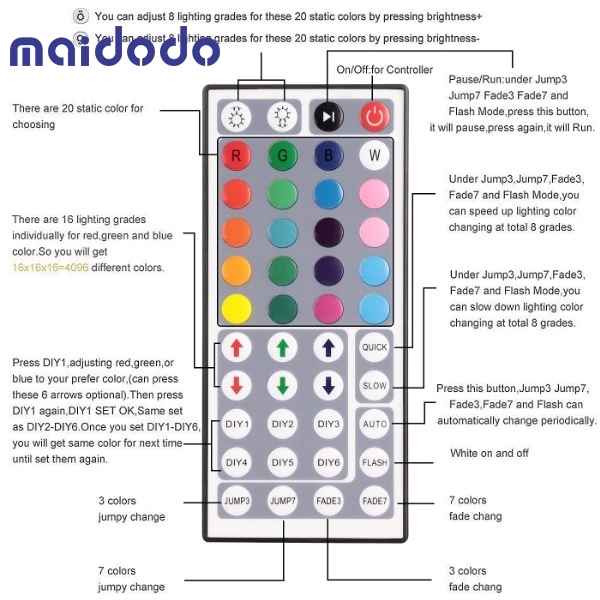

20 different colors (dimmable)
- Color dimmable in 8 steps
- 6 storage spaces for own colors (DIY)
- 6 different color changing programs
- Auto: Changes the other 5 programs automatically
- Flash: The color white flashes and can be set with the Quick button to a stroboscope
- Jump3: The colors red, green and blue flash alternately
- Jump7: 7 Color flashes alternately
- Fade3: The color red, green and blue become light and dark and alternate
- Fade7: Gentle color sequence with many different colors
Benefit Features:
- 1. 44 Keys IR Remote Controller for RGB LED SMD strip lights.
- 2.Adopt IR remote to control the LED strip lights.
- 3.It is used to control led strip light's color, brightness and flash modes.
- 4.Support SMD 5050/3528 RGB Strip Lights.
- 5.modes of control include Flash, strobe, Fade, Smooth etc.
LED RGB Controller,Led Strip Controller,RGB LED Light Controller

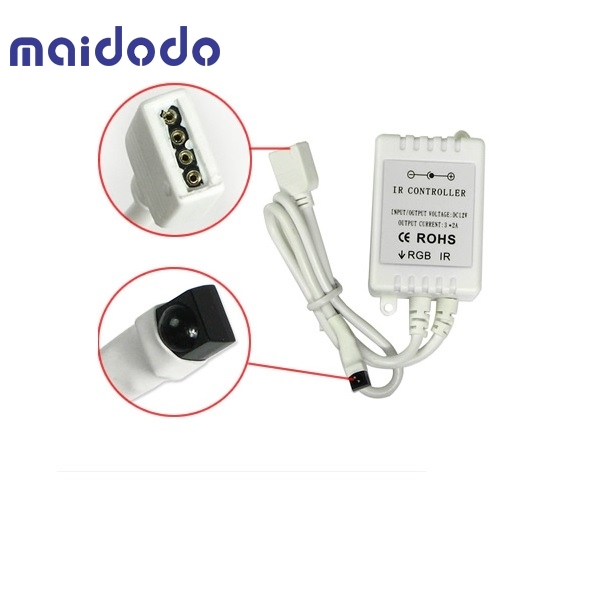

- 44 Keys IR Remote Controller usded for RGB LED SMD 5050/3528 strip lights, it can control LED strip light's color and flash modes such as lash, strobe, Fade, Smooth.

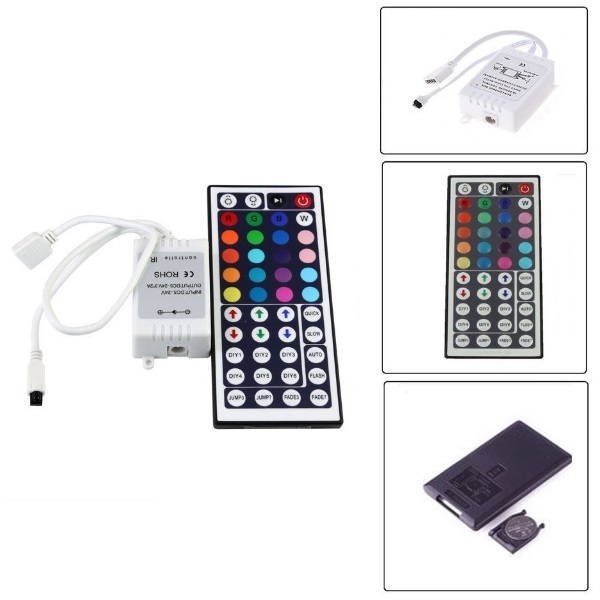

Package including
- 1 * Remote Control Box
- 1 * 44Key IR Remote Control (Without Battery)
