Product Details
|
Brand
|
Maidodo
|
|
Item model
|
MDD-KZQ-RGB-MINI10K
|
|
Supply Voltage
|
DC5 ~ 24V
|
|
Output Channel
|
3 channels
|
|
Output current
|
4A*3
|
|
Output Power
|
< 144W
|
|
Connect method
|
Common anode
|
|

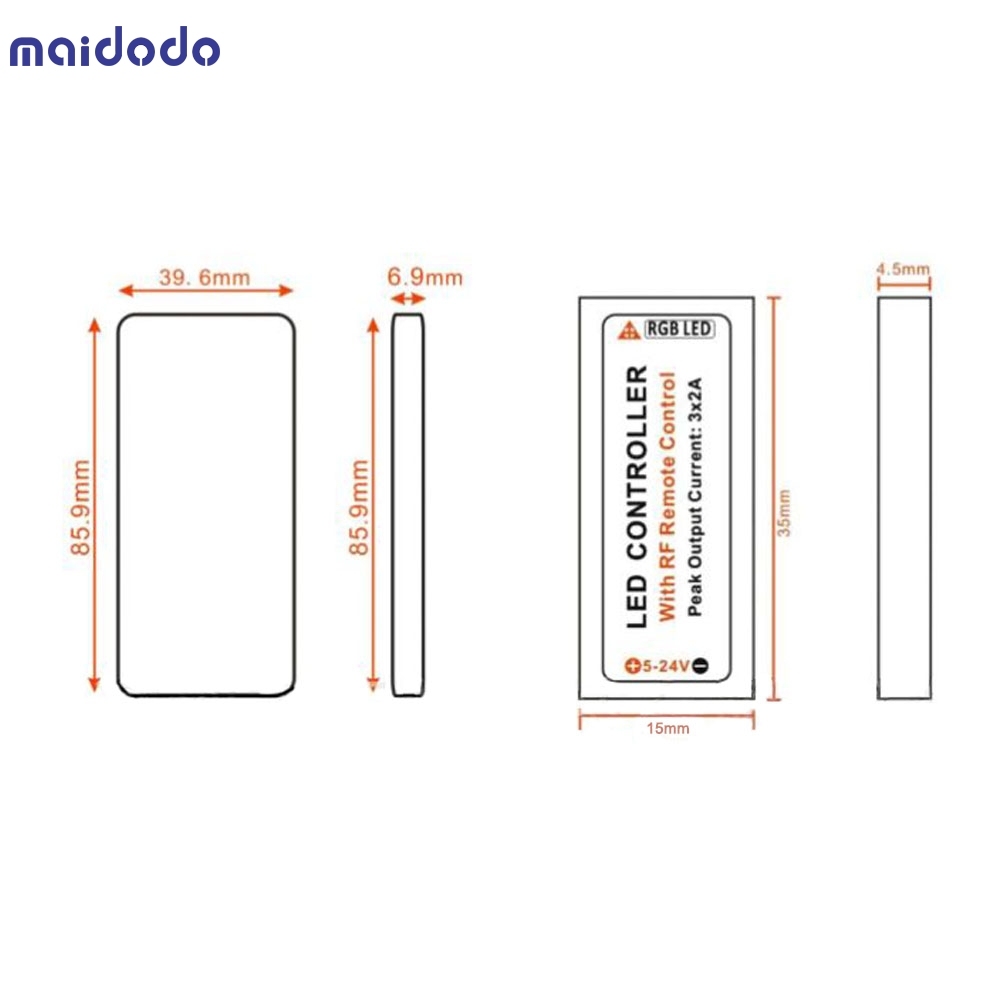

Controller Size
|
L35.0×W15.0×H4.5mm
|
|
Remote Control Size
|
L85.9×W39.6×H6.9mm
|
|
Net weight
|
28g
|
|
Gross weight
|
33g
|
|
Static power consumption
|
<0.5W
|
|
Dynamic Speed Level
|
10 levels
|
|
Output current
|
<3A (per circuit)
|
|

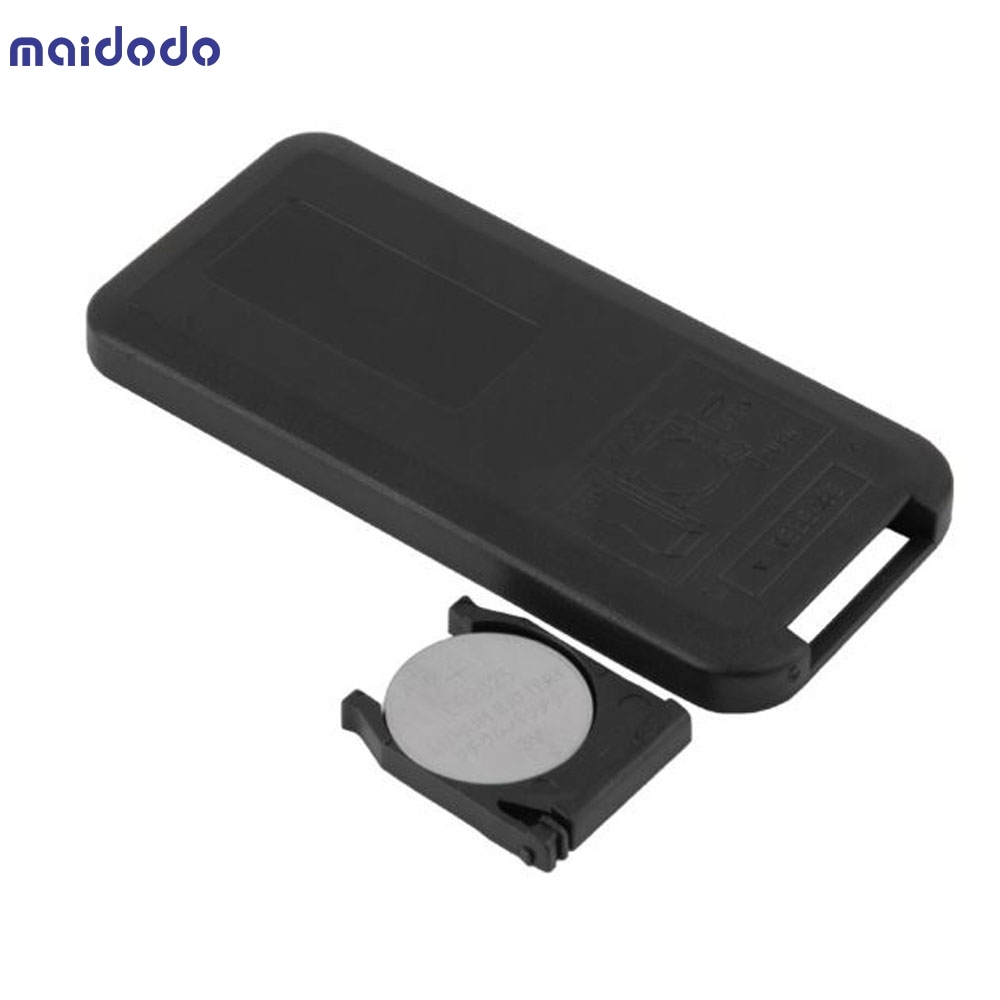

Remote Battery
|
CR2025(Do not include)
|
|
Remote Distance
|
About 20m
|
|
Control mode
|
RF
|
|
Connect Way
|
RGB LED for LED light, 5-24V for power supply
|
|
Working Temperature
|
-20-60 ℃
|
Benefit Features:

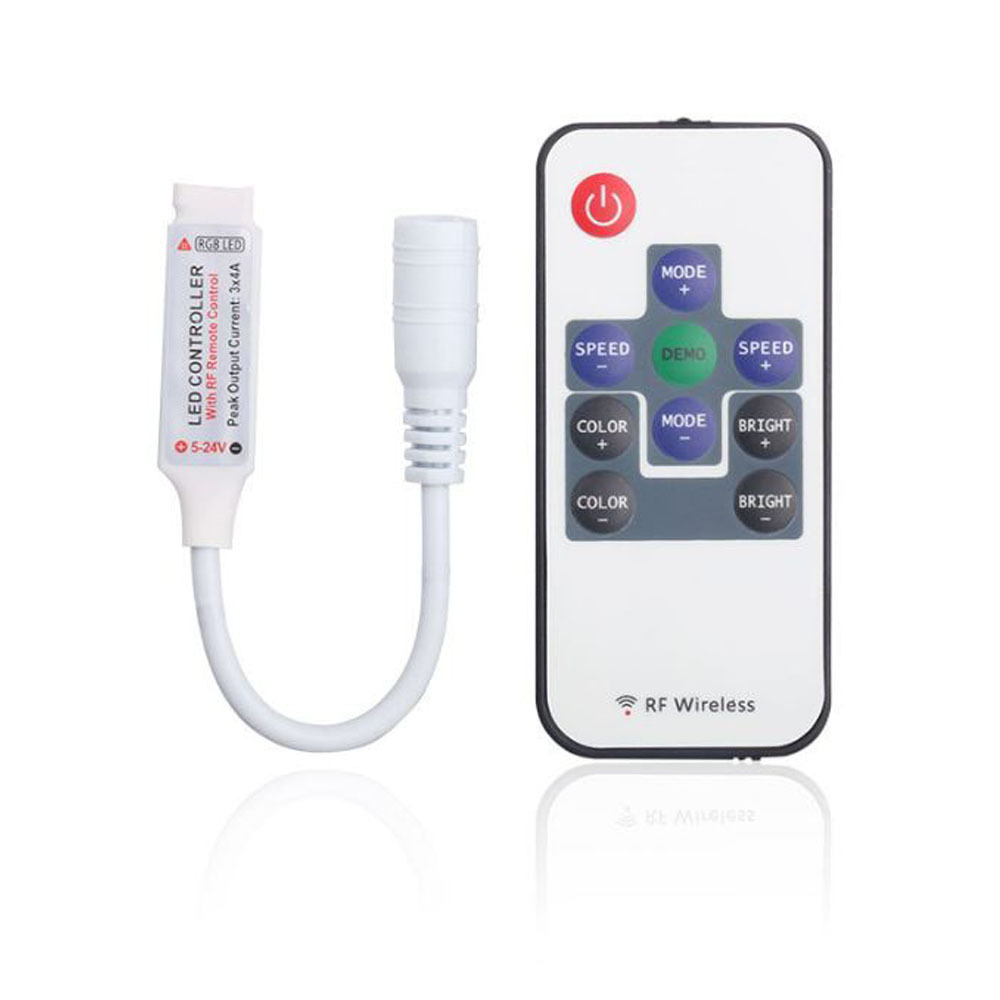

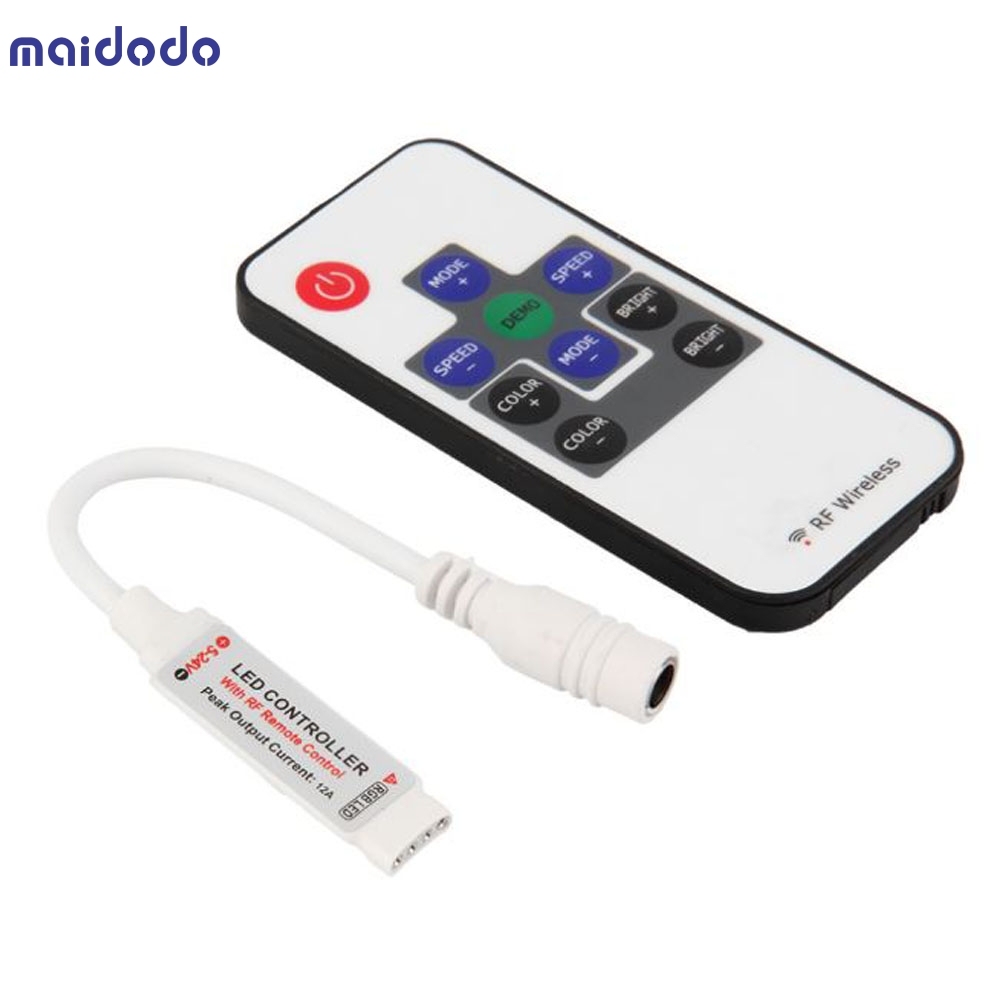

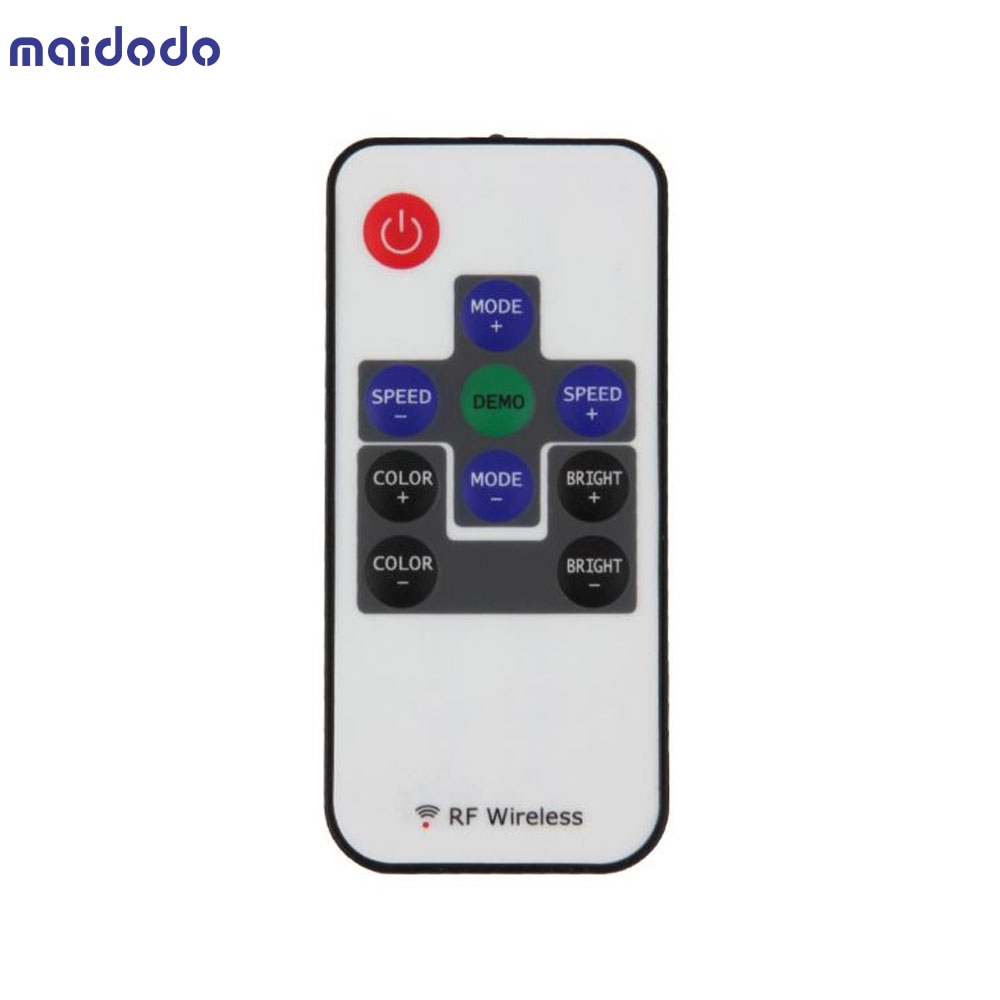

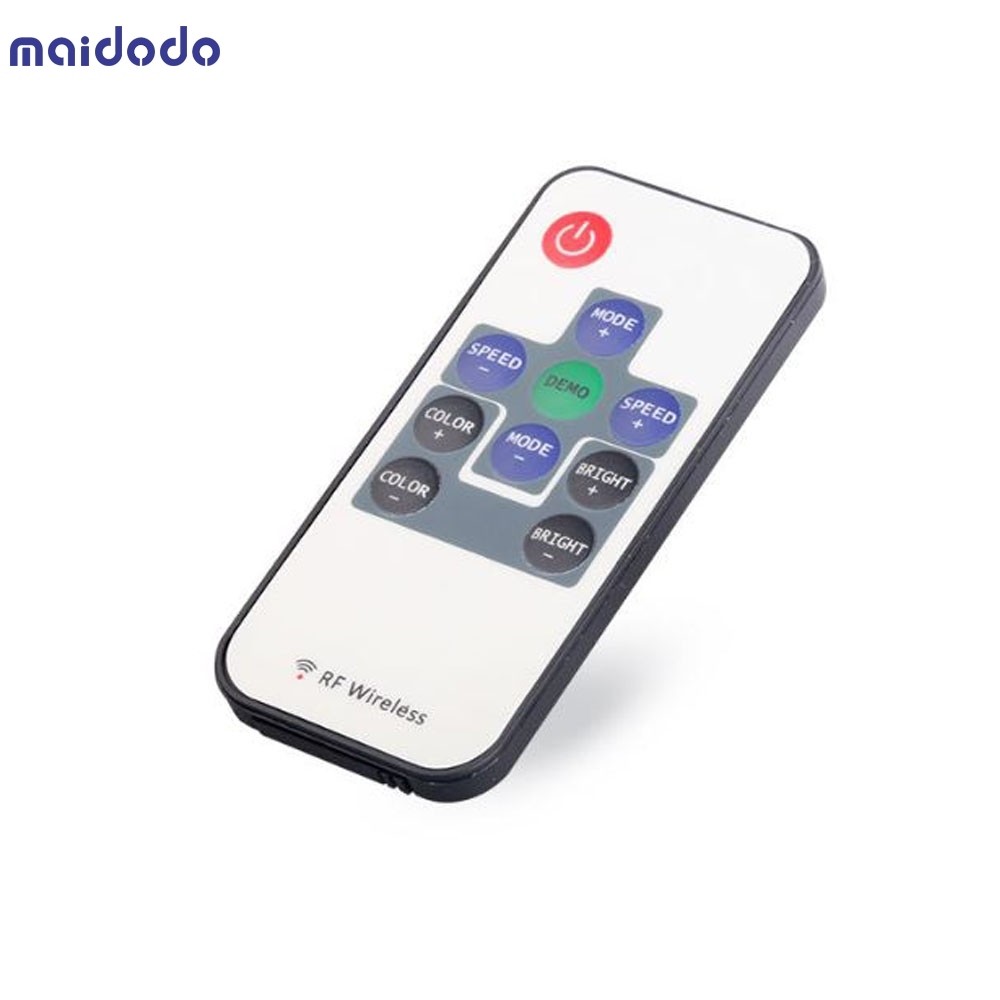

- 1.Comes with 10 key Remote Control, very easy to operate
2.RF wireless remote control,long distance
3.19 dynamic modes, 20 static colors and 256-grade PWM
4.Adjustable static color brightness and dynamic playing speed
5.Demo mode. At Demo mode, strip will cycle 9 dynamic modes 3 times
6.Auto memorize function
7.1 to 1 remote paired
8.DC5V-24V wide working voltage, preventing opposite direction connection of power supply
9.Used for RGB LED strip such as 5050, 3528, etc
10.1 year warranty time

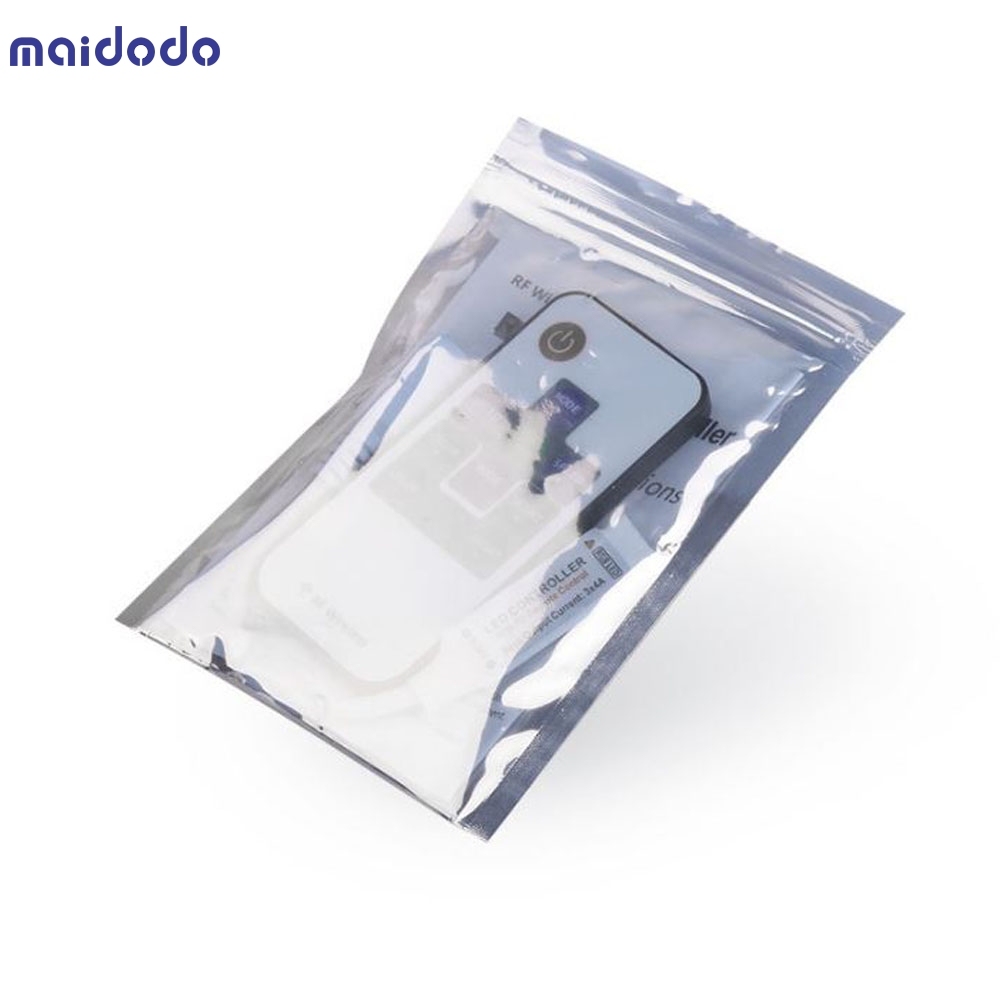

Package including
1 * MINI10K LED Light Controller
