Specifications
|
Brand |
Maidodo |
|
Item model |
MDD-3528 RGB-60-5M-44KEY |
|
Light color |
RGB |
|
Width |
8 mm |
|
Length |
5 meters |
|
LED chip |
SMD 3528 |
|
Power supply |
DC 12V |
|
Beam angle |
120 degrees |
|
Flexible |
330 degrees bendable |
|
Waterproof |
IP65(Waterproof) / IP20 (Non-Waterproof) |
|
Number of LEDs |
60 LEDs per meter |
|
Working temperature |
-20 to 60 degrees |
|
Divisible |
Each 0.5meter can be separated |
Technical data for remote control with 44 keys
|
Connecting mode |
Common anode |
|
Dynamic mode |
19modes |
|
Supply voltage |
DC12V |
|
PWM grade |
256 grades |
|
0utput |
3 channels |
|
Item weight |
60g |
|
Package weight |
90g |
|
Working temperature |
-20-60 °C |
|
Package size |
125.5 * 6.5 * 7cm |
|
Dynamic Speed Level |
10 levels |
|
Remote distance |
> 30m at open area |
|
Remote Control size |
123 * 3.5 * 2.2cm |
|
Static power consumption |
< 1 W |
|
Output current |
< 2 A (each channel) |
|
Controller Box size |
125cm x 6.5cm x 5cm |
|
Output power |
5V < 30W；12V< 72W；24V< 144W |
|
RGB mini controller Battery |
CR2025 cell battery |
Technical data for the 2A power supply
|
Current Rating |
2A |
|
Power |
24W |
|
Output voltage |
DC12V |
|
Input voltage |
AC 100 ~ 240V 50 ~ 60Hz |
|
Protection factor |
IP20 |
|
Safety Consideration |
CE / RoHS / FCC |
|
Operating temperature |
-20 to + 60 ° C |

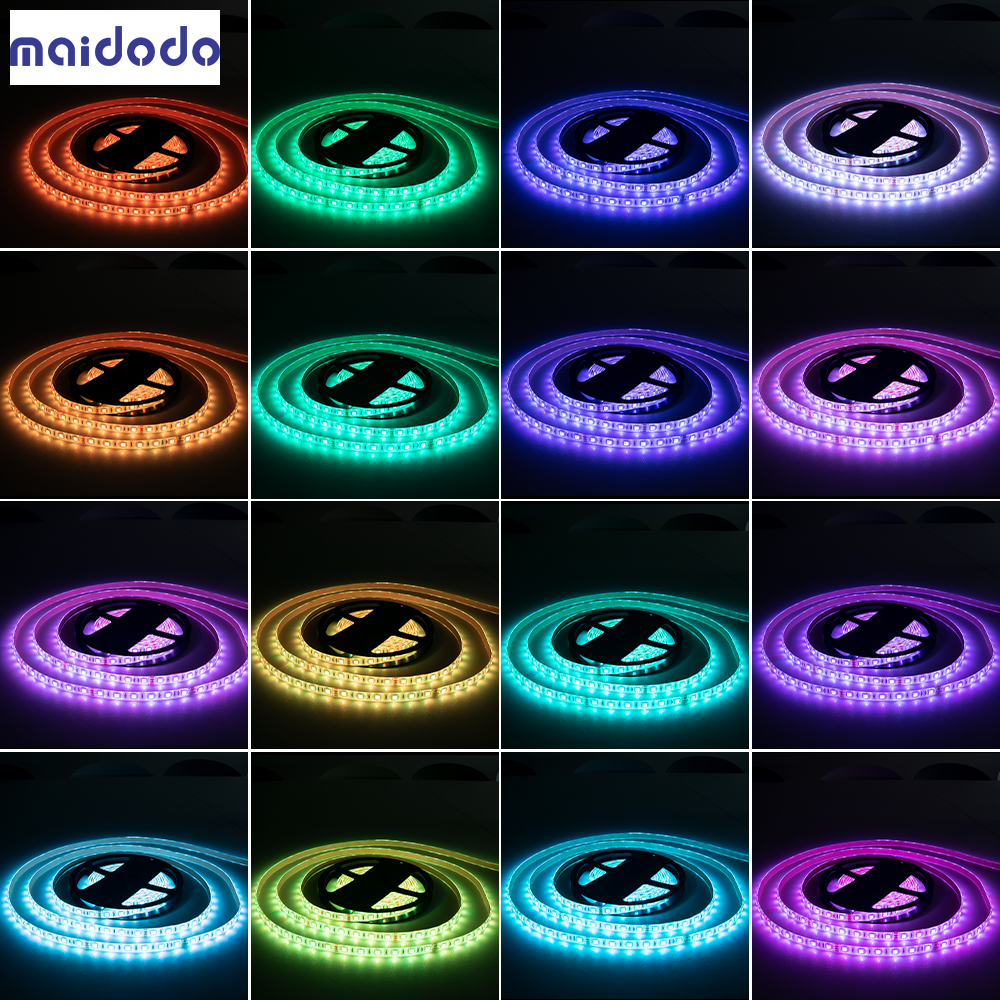

20 different colors (dimmable)
Packing list
